RETAINING WALL DESIGN
Retaining wall design is a critical component of civil engineering and site development, requiring precise structural analysis, soil evaluation, and drainage design to ensure long term stability and performance. Retaining walls are used to support grade changes, prevent soil movement, stabilize slopes, and create usable land on residential, commercial, and industrial sites. When not properly engineered, retaining walls can fail due to overturning, sliding, excessive settlement, or hydrostatic pressure buildup.

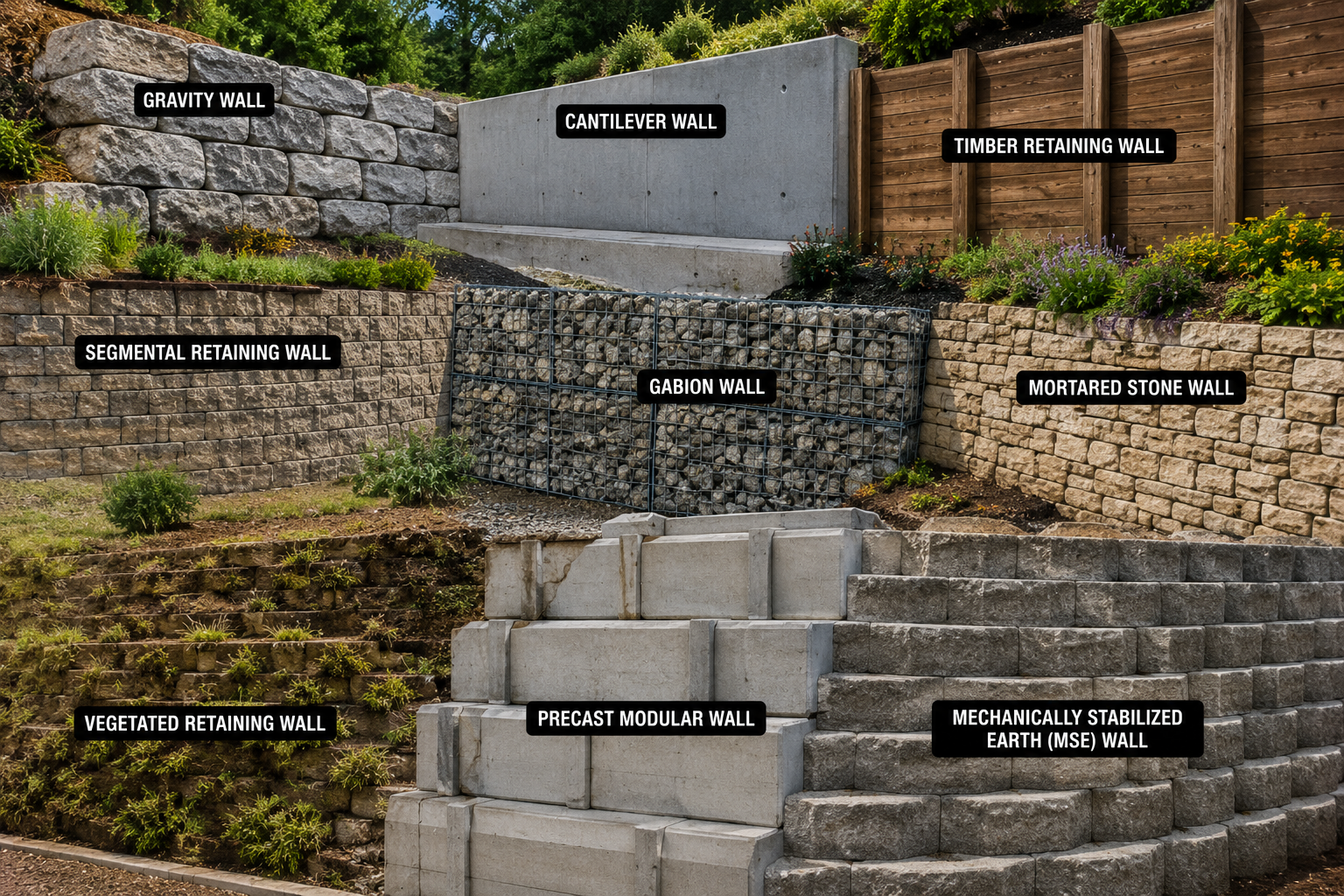

At Levi Jay & Associates Inc., we provide professional retaining wall design services in Texas, delivering code compliant, cost effective, and constructible solutions for projects throughout the Dallas-Fort Worth area and beyond. Our retaining wall engineering services include the design of cast in place concrete retaining walls, segmental block retaining walls, mechanically stabilized earth MSE walls, and reinforced soil retaining systems. Each retaining wall system is selected based on project specific conditions such as wall height, soil properties, loading requirements, available space, aesthetics, and budget.
As experienced structural and civil engineers, we evaluate all relevant factors to determine the most efficient and reliable retaining wall design for each project. Understanding soil conditions is essential to proper retaining wall design. Soil characteristics such as density, shear strength, moisture content, and compaction directly influence wall performance. Our retaining wall calculations consider active and passive earth pressures, lateral soil loads, surcharge loads from buildings, vehicles, or adjacent structures, and potential changes in soil conditions over time. When a geotechnical report is available, we incorporate soil data and recommendations into our design. When subsurface information is limited, we apply conservative engineering principles based on regional experience to ensure safety and compliance. Drainage design is one of the most important elements of retaining wall engineering. Water accumulation behind a retaining wall creates hydrostatic pressure, which can significantly increase lateral loads and lead to structural failure.

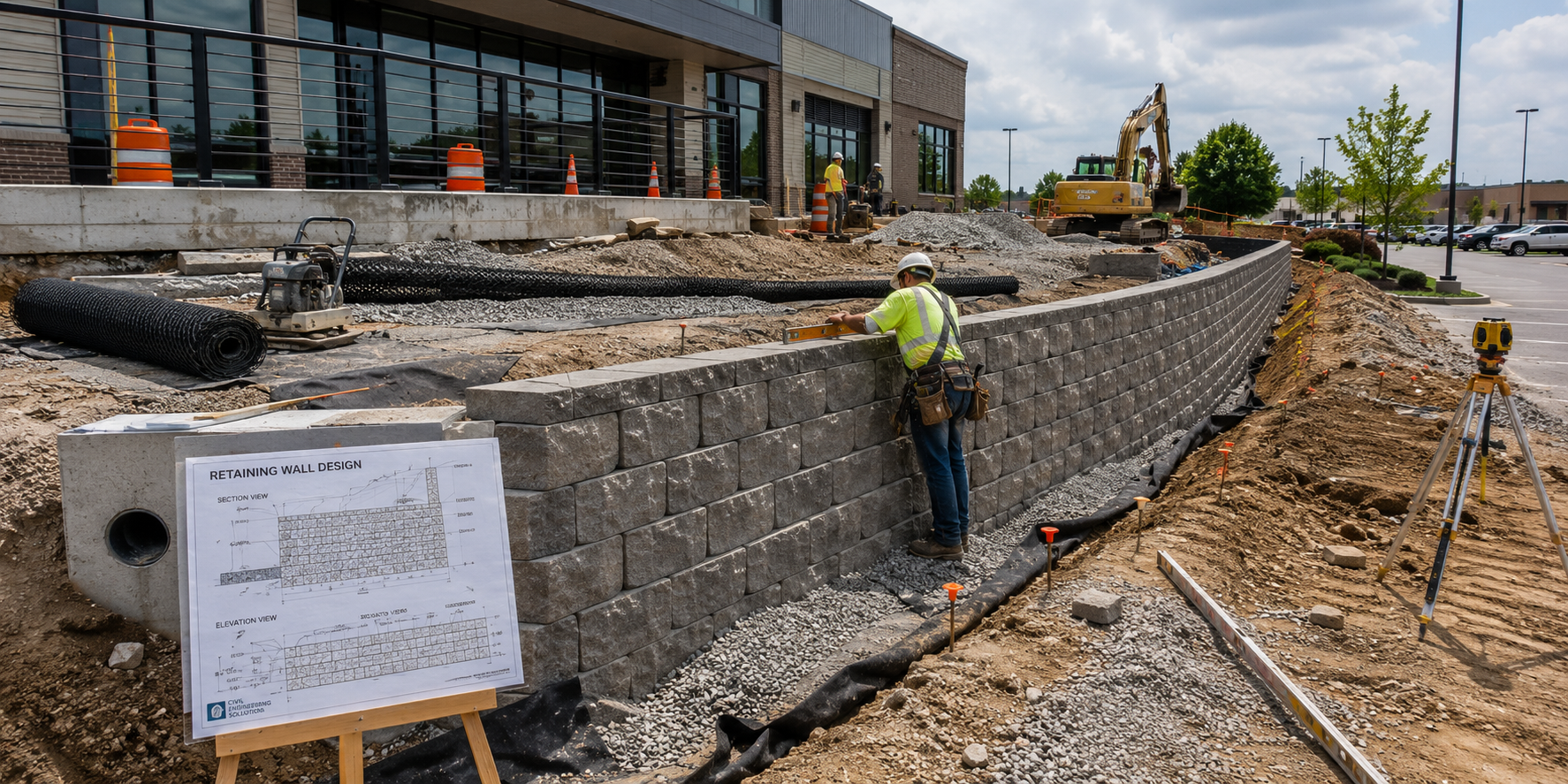

Levi Jay & Associates Inc. incorporates effective drainage systems into every retaining wall design. This may include gravel backfill, perforated drain pipes, weep holes, filter fabric, and proper outlet design to allow water to drain freely while preventing soil migration. Proper drainage design not only improves structural performance but also extends the life of the retaining wall and reduces maintenance costs. Structural stability is verified through detailed engineering analysis. Our retaining wall design calculations evaluate overturning resistance, sliding resistance, bearing capacity, and overall stability under anticipated loading conditions. For taller walls or complex site conditions, we also analyze global stability, slope interaction, and potential failure surfaces. Reinforcement design, footing dimensions, and wall geometry are carefully engineered to meet or exceed required safety factors and comply with applicable building codes and engineering standards.
Whether you need a retaining wall for residential grading, commercial site development, slope stabilization, or infrastructure projects, we provide engineered solutions that deliver stability, durability, and long-term performance. If you are searching for retaining wall design engineer near me or retaining wall design services in Texas, our team provides the expertise and results you can trust.

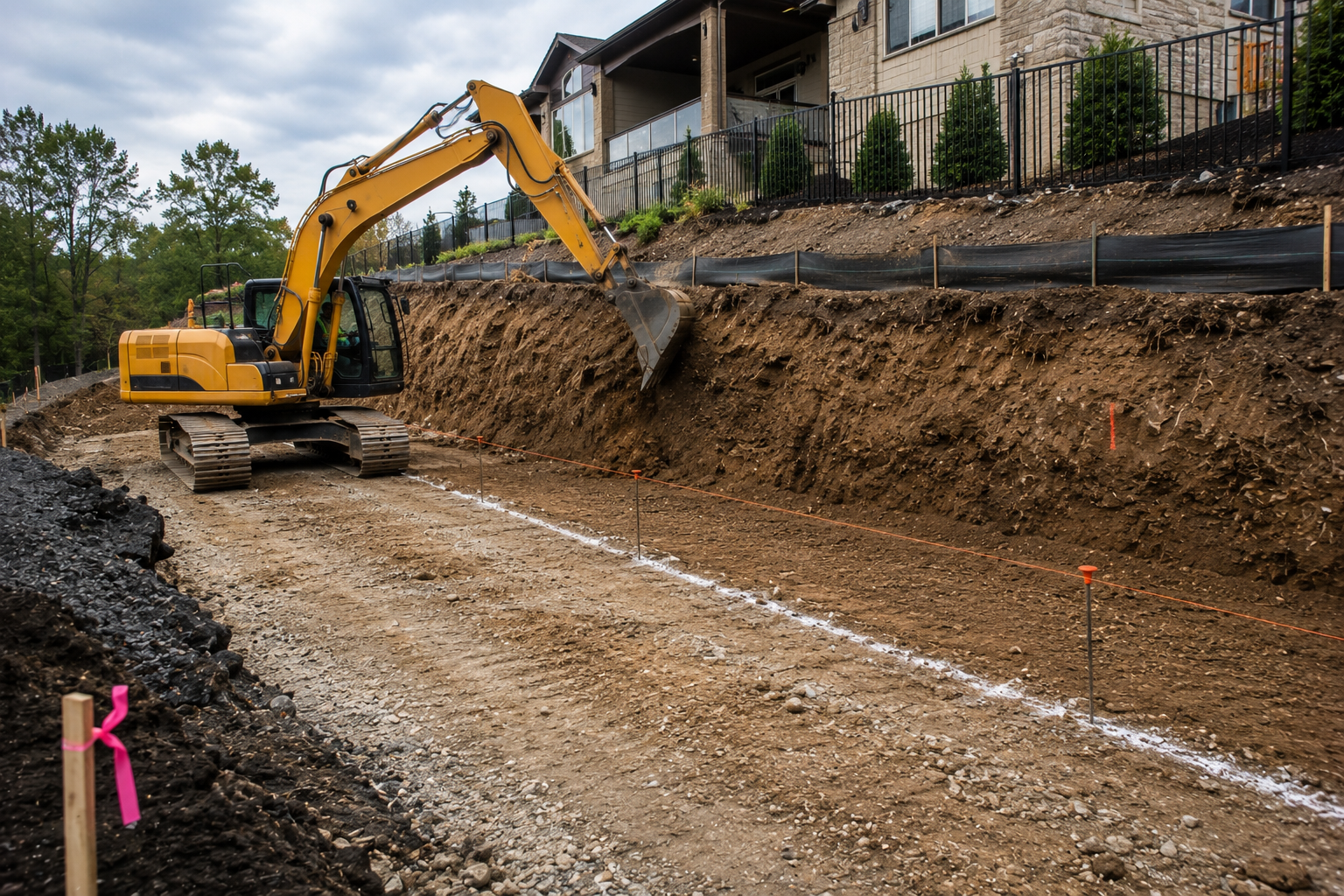

Constructability is a key focus of our retaining wall design services. We understand that even the best design must be practical and efficient to build. Our retaining wall plans include clear dimensions, reinforcement details, material specifications, and construction notes that guide contractors through installation. We also consider site access, equipment limitations, excavation requirements, and construction sequencing to ensure efficient project execution. This reduces the likelihood of delays, change orders, and field modifications.

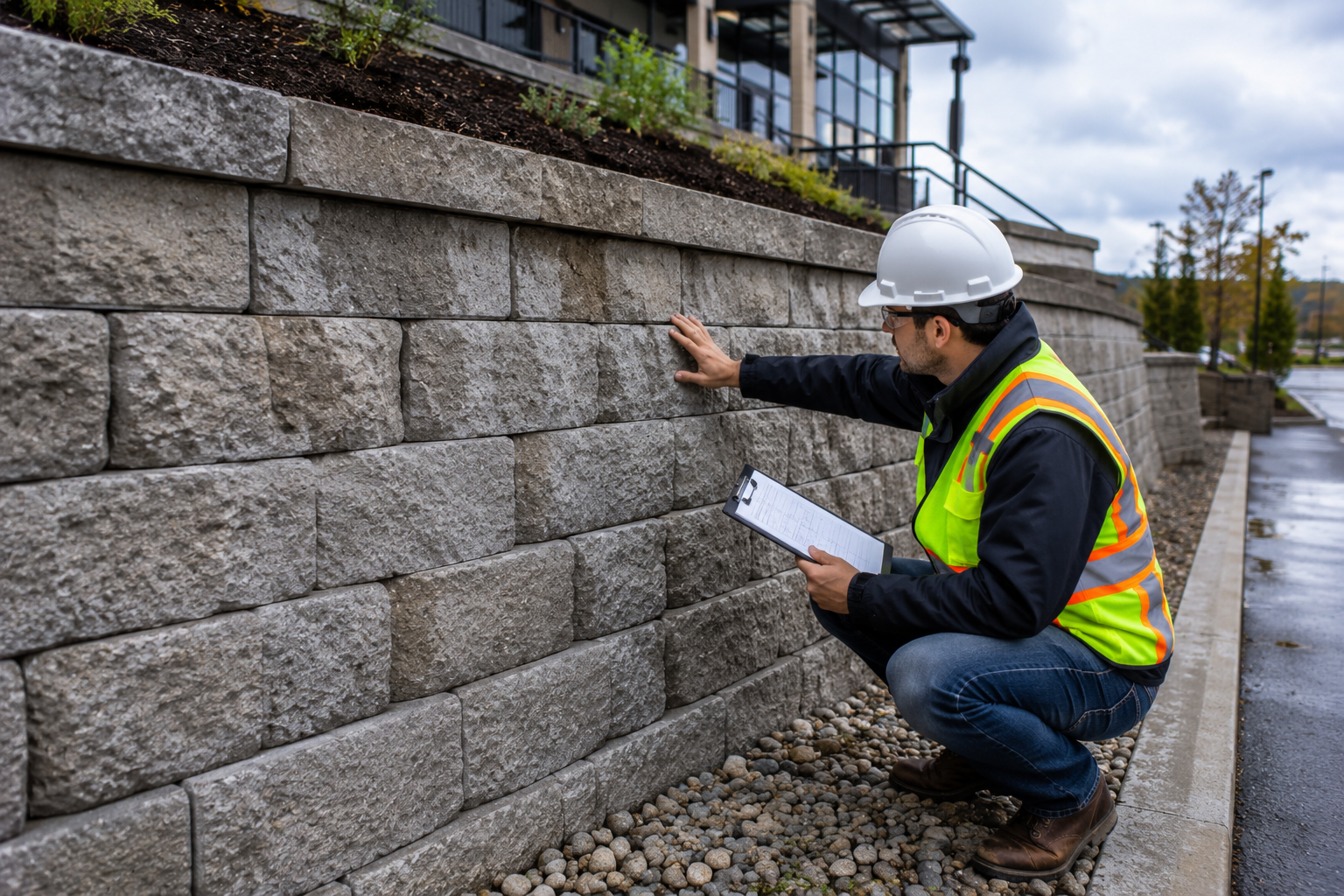

In addition to new retaining wall design, Levi Jay & Associates Inc. provides engineering services for retaining wall repair, replacement, and retrofit projects. We evaluate distressed or failed retaining walls to determine the cause of failure, whether due to poor drainage, inadequate design, or construction deficiencies. Based on our forensic evaluation, we develop engineered repair solutions that restore stability and address the root cause of the issue.
All retaining wall designs prepared by Levi Jay & Associates Inc. are compliant with applicable building codes and engineering standards. As a licensed Professional Engineer, we take full responsibility for our designs, ensuring that they meet safety, performance, and regulatory requirements. Our retaining wall engineering services are designed to provide long-term reliability, structural integrity, and cost efficiency. We combine civil engineering expertise, structural analysis, and real world construction experience to deliver high quality retaining wall design services.
